Precision Steel Tubes


Intercom Group Ltd produces cold-formed precision welded steel tubes in accordance with international standard EN 10305-3:2010 and DIN 2394, for mechanical engineering, automotive, furniture and general engineering applications. The production range includes square, rectangular and round precision tubes in multiple sizes and lengths to meet every application requirement. All products are manufactured as per the standard’s tolerances, available in pickled (S2) or cold-rolled (S3) surface condition, and are in compliance with all product certifications.



Additional Information



Manufactured according to: EN 10305-3


DESCRIPTION
Cold-formed precision welded steel tubes, square/rectangular and round


DIMENSIONS:
Square/rectangular precision tubes โ€“ from 15×15 up to 70×25 mm;
Round precision tubes โ€“ from ะค10 up to ั„60 mm;
Wall thickness from 0.6 mm up to 2.0 mm,
length 3000mm or custom up to 9000mm.


TECHNICAL SPECIFICATIONS:
Technical delivery conditions โ€“ according to EN 10305-3:2010; DIN 2394
Steel grades: E220; DC01; DD11
Surface conditions: S2 (pickled) and S3 (cold rolled)



Sizeย  Wall thickness – Rectangular
Diameter 0,6 0,8 0,9 1,0 1,1 1,2 1,4 1,5 1,8 2,0
mm inch Production range
15 15
20 10
30 15
25 15
20 20
22 22
30 20
25 25
30 30
40 10
40 20
27 40
40 30
35 35
40 40
50 30
70 25

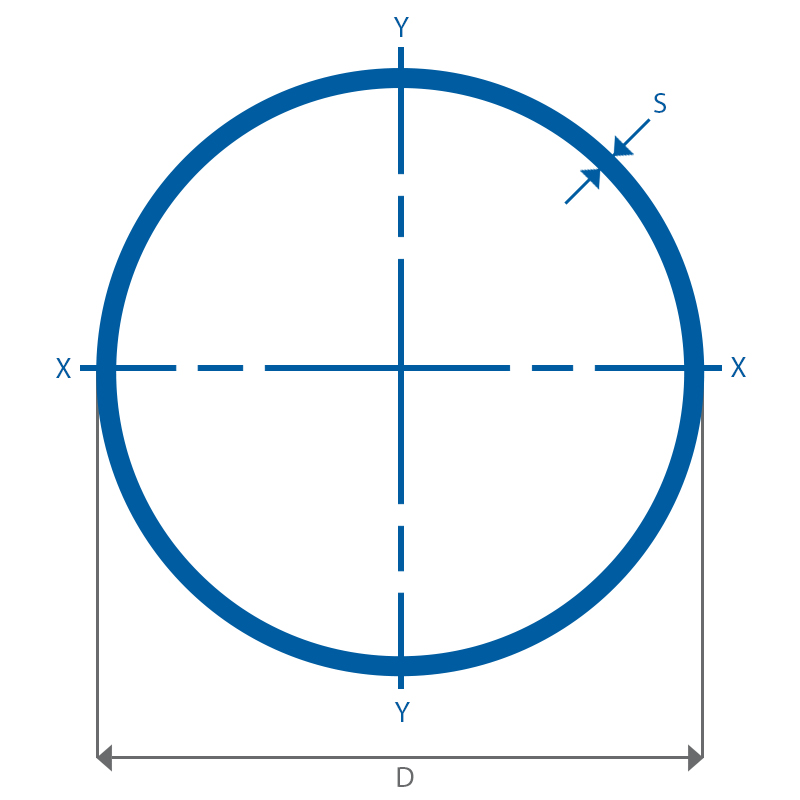

Sizeย  Wall thickness – Round
Diameter 0,6 0,8 0,9 1,0 1,1 1,2 1,4 1,5 1,8 2,0
mm Production range
ะค10
ะค12
ั„16
ั„18
ั„19
ะค20
ะค21.3
ั„22
ั„24
ั„25
ั„26
ะค26.9
ั„28
ั„30
ั„32
ั„38
ั„40
ั„42.4
ั„51
ั„60
